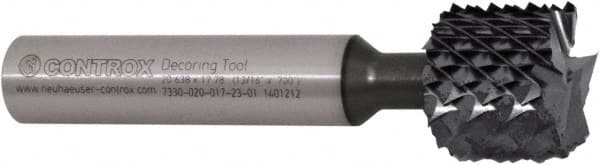

Controx - 1/2" Diam, 0.45" LOC, Square End, Solid Carbide Diamond Pattern Router Bit - Right Hand Cut, 2-61/64" OAL
Item #: 58191669
Brand: Controx
Model #: 73350120112301
Exact Tooling IR#: 04
Features and Benefits
Square ends are used for general milling applications including slotting, profiling and plunge cutting.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Proprietary coatings are specially designed by the manufacturer.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.70 |
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| End Type | Square |
| Length of Cut (mm) | 11.43 |
| Length of Cut (Decimal Inch) | 0.4500 |
| Length of Cut (Inch) | 0.4500 |
| Shank Diameter (mm) | 12.70 |
| Overall Length (mm) | 74.93 |
| Overall Length (Inch) | 2-61/64 |
| Material | Solid Carbide |
| Finish/Coating | Proprietary |
| Cutting Direction | Right Hand |
