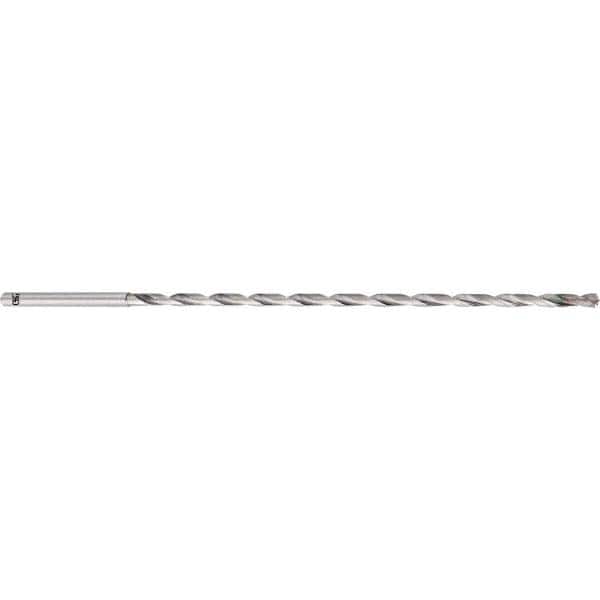

OSG - 17/32" 140° 2-Flute Solid Carbide Extra Length Drill Bit
Item #: 48879274
Brand: OSG
Model #: 655053112
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
EgiAs is a nano-multilayer coating constructed with extreme toughness, high wear and heat resistance characteristics to ensure stable and consistent tool life. Ideal for use on materials including alloys, carbon steels, cast iron and hardened steels up to 35 HRC. EgiAs is a proprietary coating exclusive to OSG.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 17/32 |
| Drill Bit Size (Decimal Inch) | 0.5313 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | EgiAs |
| Overall Length (mm) | 400.00 |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Flute Length (mm) | 340.00 |
| Cutting Direction | Right Hand |
| Flute Length x Diameter Ratio | 22xD |
| Number of Flutes | 2 |
| Shank Type | Straight |
| Threaded Shank | No |
| Web Thinning | X-Thinned |
| Series/List | 6550 |
