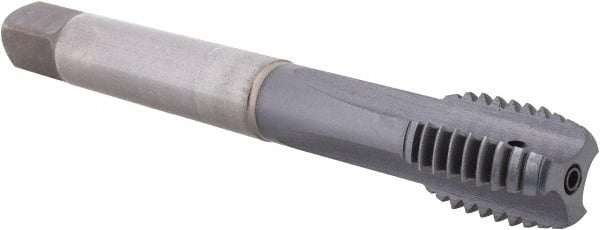

Emuge - 5/8-11 UNC 3-Flute TiCN Finish Cobalt Straight Flute Machine Tap
Item #: 41953100
Brand: Emuge
Model #: CW179401.5015
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 5/8-11 |
| Class of Fit | 2BX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Through Coolant | Through Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 4.33100 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 1.0630 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Shank Length (Decimal Inch) | 3.27 |
| Square Size (Decimal Inch) | 0.3600 |
| Material Application | Aluminum Alloys; Cast Iron; Copper Alloys |
| Material Application2 | Aluminum Alloys; Cast Iron; Copper Alloys |
