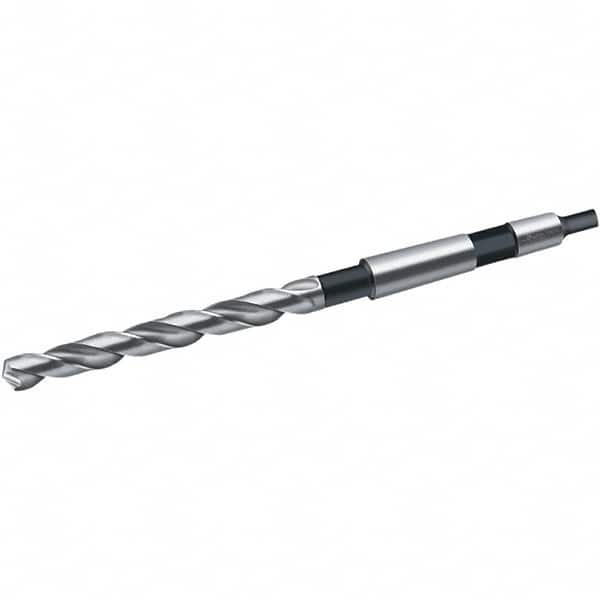

Walter-Titex - 19.5mm, 2MT 130° Point Cobalt Taper Shank Drill Bit
Item #: 36366383
Brand: Walter-Titex
Model #: 5065862
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 19.50 |
| Drill Bit Size (Decimal Inch) | 0.7677 |
| Drill Point Angle | 130 |
| Shank Taper Designation | 2MT |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Overall Length (mm) | 238.00 |
| Flute Length (mm) | 140.00 |
| Flute Length (Decimal Inch) | 5.5118 |
| Spiral Type | Regular Spiral |
| Maximum Drilling Depth (Decimal Inch) | 4.72 |
| Cutting Direction | Right Hand |
| Point Type | VA |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 228-B; DIN 345 |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Material Grade | M35 |
| Specification Designation | DIN |
| Series/List | A4244 |
