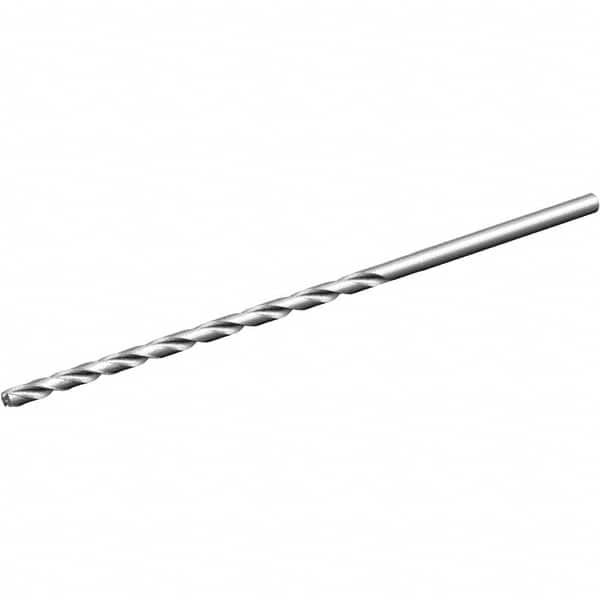

Kennametal - 14.5mm 135° 2-Flute Solid Carbide Extra Length Drill Bit
Item #: 42704981
Brand: Kennametal
Model #: 5506367
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) and titanium silicon nitride (TISIN) is a multi-layered coating that is extremely wear resistant. It is commonly used for machining aircraft and aerospace material.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 14.50 |
| Drill Bit Size (Decimal Inch) | 0.5709 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | AlCrN/TiSiN |
| Overall Length (mm) | 389.00 |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 0.5906 |
| Shank Diameter (mm) | 15.00 |
| Flute Length (mm) | 328.00 |
| Flute Length (Decimal Inch) | 12.9134 |
| Cutting Direction | Right Hand |
| Flute Length x Diameter Ratio | 20xD |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Type | Straight |
| Maximum Drilling Depth (mm) | 297.00 |
| Maximum Drilling Depth (Decimal Inch) | 11.6929 |
| Specification Designation | DIN |
| Shank Length (Decimal Inch) | 2.1260 |
| Shank Length (mm) | 54.00 |
| Threaded Shank | No |
| Drill Point Length (mm) | 2.70 |
| Drill Point Length (Decimal Inch) | 0.1063 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0007 |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.018 |
| Web Thinning | Web-Thinned |
| Material Grade | Fine Grain |
| Series/List | B272-HPG |
