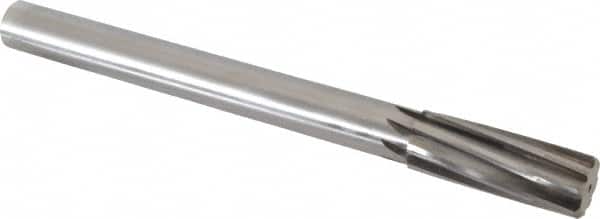

Made in USA - 1" Carbide-Tipped 8 Flute Chucking Reamer
Item #: 90835448
Brand: Made in USA
Model #:
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous metals including cast iron, steel and steel alloy.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 1.0000 |
| Reamer Diameter (Inch) | 1 |
| Reamer Material | Carbide-Tipped |
| Shank Type | Straight |
| Flute Type | Spiral |
| Overall Length (Inch) | 10-1/2 |
| Flute Length (Inch) | 2-3/4 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 8 |
| Maximum Shank Diameter (Inch) | 7/8 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (Decimal Inch) | 0.0003 to -0.0000 |
