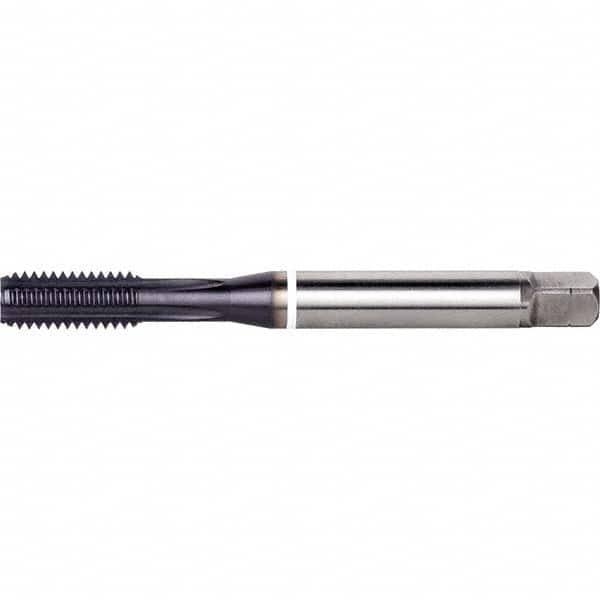

DORMER - 1-12 UNF 2BX 4 Flute TiAlN Finish Cobalt Machine Tap
Item #: 16947046
Brand: DORMER
Model #: 7350248
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 1-12 |
| Class of Fit | 2BX |
| Thread Limit | H6 |
| Number of Flutes | 4 |
| Chamfer | Semi-Bottoming |
| Material | Cobalt |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Through Coolant | Through Coolant |
| Thread Standard | UNF |
| Overall Length (Decimal Inch) | 5.51200 |
| Series/List | E915 |
| Thread Length (Decimal Inch) | 1.0630 |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Size (Decimal Inch) | 0.5970 |
| Material Application | Cast Iron |
