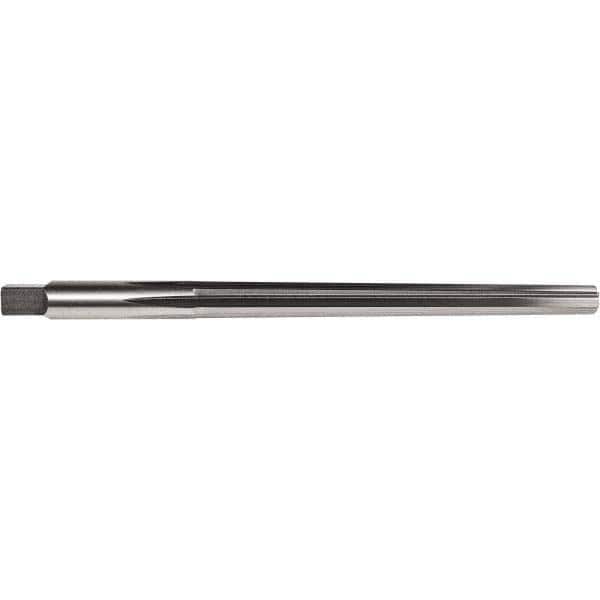

Union Butterfield - #0 Pin, 0.1638" Diam, 0.1287" Small End, 11/64" Diam Straight Shank, 1-11/16" Flute, Taper Pin Reamer
Item #: 65708729
Brand: Union Butterfield
Model #: 5011129
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #0 |
| Small End Diameter (Decimal Inch) | 0.1287 |
| Reamer Diameter (Decimal Inch) | 0.1638 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (Inch) | 2-15/16 |
| Flute Length (Inch) | 1-11/16 |
| Number of Flutes | 6 |
| Shank Diameter (Inch) | 11/64 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
