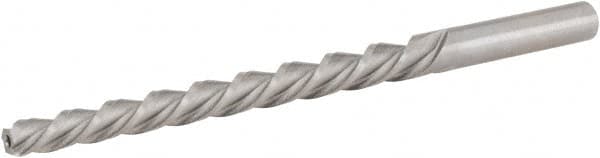

Hertel - #2 Pin, 0.2008" Diam, 0.1605" Small End, 13/64" Diam Straight Shank, 1-15/16" Flute, Taper Pin Reamer
Item #: 30162788
Brand: Hertel
Model #:
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #2 |
| Small End Diameter (Decimal Inch) | 0.1605 |
| Reamer Diameter (Decimal Inch) | 0.2008 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 3-3/16 |
| Flute Length (Inch) | 1-15/16 |
| Number of Flutes | 3 |
| Shank Diameter (Inch) | 13/64 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
