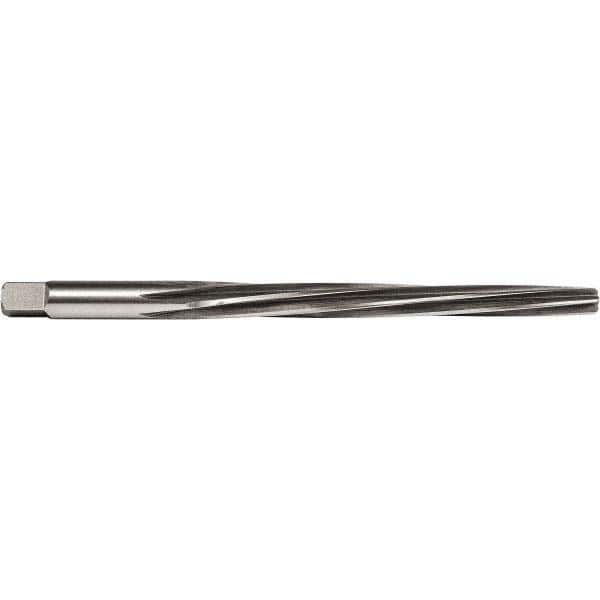

Union Butterfield - #10 Pin, 0.7216" Diam, 0.5799" Small End, 5/8" Diam Straight Shank, 6-13/16" Flute, Taper Pin Reamer
Item #: 65708505
Brand: Union Butterfield
Model #: 5011156
Features and Benefits
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #10 |
| Small End Diameter (Decimal Inch) | 0.5799 |
| Reamer Diameter (Decimal Inch) | 0.7216 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Overall Length (Inch) | 9-5/16 |
| Flute Length (Inch) | 6-13/16 |
| Number of Flutes | 8 |
| Shank Diameter (Inch) | 5/8 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
