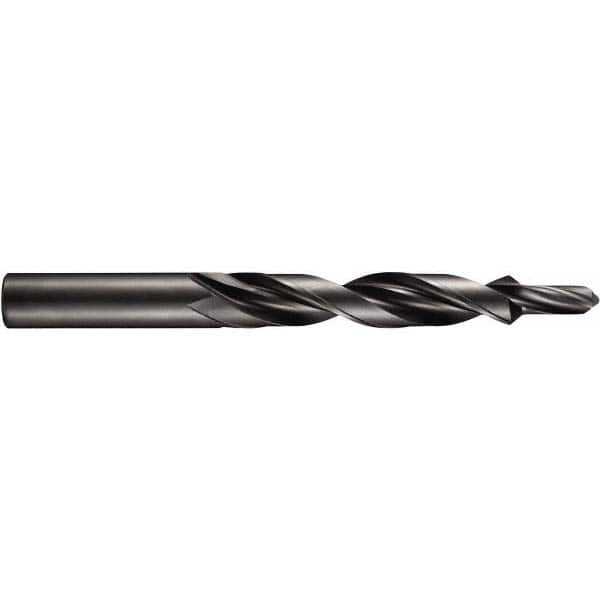

DORMER - 15mm Body, 8.4mm Step Diam, Tanged Shank, High Speed Steel Subland Step Drill Bit
Item #: 80996481
Brand: DORMER
Model #: 0034354
Features and Benefits
Tanged shanks are used in general purpose machining operations. The shank is constructed of a flat portion at the end of the shank to accommodate the tapered holes of drill presses.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials.
Oxide coating prevents chip building, galling and welding on the workpiece. It is commonly used on low carbon metals, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Drill Body Size (mm) | 15 |
| Drill Body Size (Decimal Inch) | 0.5910 |
| Step Diameter (mm) | 8.40 |
| Step Diameter (Decimal Inch) | 0.3307 |
| Shank Type | Tanged |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide |
| Overall Length (mm) | 169.00 |
| Overall Length (Decimal Inch) | 6.6586 |
| Step Length (mm) | 19.00 |
| Step Length (Decimal Inch) | 0.7486 |
| Specification Designation | DIN |
| Flute Length (mm) | 114.00 |
| Flute Length (Decimal Inch) | 4.4916 |
| Shoulder Included Angle | 90 |
| Drill Point Angle | 118 |
| Specification Number | DIN 1809; DIN 8374 |
| Series/List | A400 |
