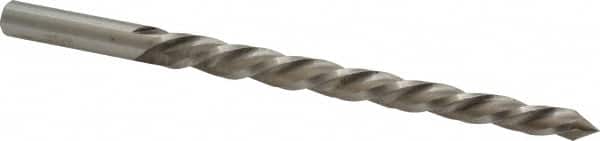

Interstate - #7 Pin, 27/64" Diam, 0.3297" Small End, 13/32" Diam Straight Shank, 4-7/16" Flute, Taper Pin Reamer
Item #: 02403079
Brand: Interstate
Model #:
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #7 |
| Small End Diameter (Decimal Inch) | 0.3297 |
| Reamer Diameter (Decimal Inch) | 0.4220 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 6-5/16 |
| Flute Length (Inch) | 4-7/16 |
| Shank Diameter (Inch) | 13/32 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
