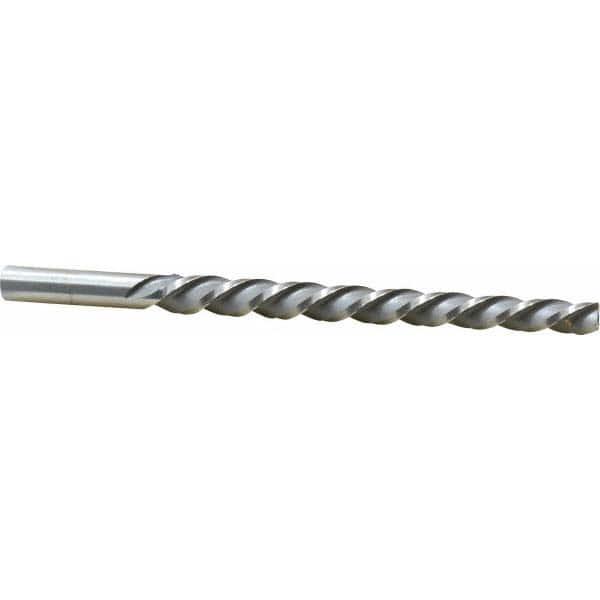

Cleveland - #8 Pin, 0.505" Diam, 0.3971" Small End, 7/16" Diam Straight Shank, 5-3/16" Flute, Taper Pin Reamer
Item #: 63759088
Brand: Cleveland
Model #: C24243
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #8 |
| Small End Diameter (Decimal Inch) | 0.3971 |
| Reamer Diameter (Decimal Inch) | 0.5050 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 7-3/16 |
| Flute Length (Inch) | 5-3/16 |
| Shank Diameter (Inch) | 7/16 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Aluminum; Carbon Steel |
