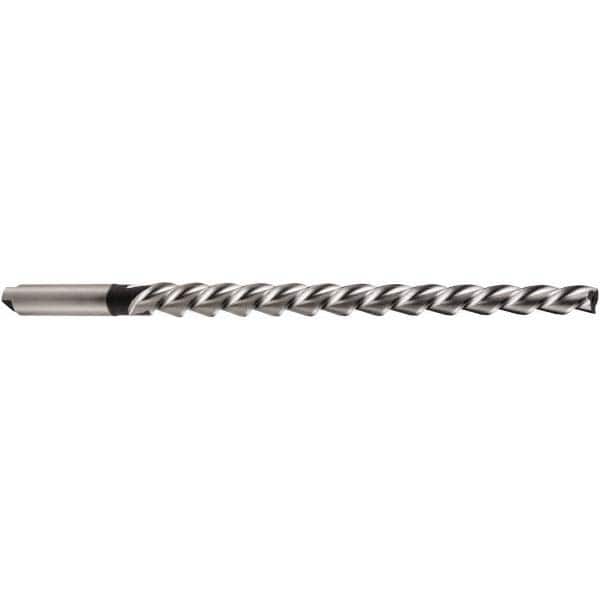

DORMER - 3mm Pin, 0.16" Diam, 0.1143" Small End, 4mm Diam Tanged Shank, 58mm Flute, Taper Pin Reamer
Item #: 65641698
Brand: DORMER
Model #: 0053928
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (mm) | 3.00 |
| Small End Diameter (mm) | 2.90 |
| Small End Diameter (Decimal Inch) | 0.1143 |
| Reamer Diameter (mm) | 4.06 |
| Reamer Diameter (Decimal Inch) | 0.1600 |
| Flute Type | Helical |
| Shank Type | Tanged |
| Overall Length (mm) | 100 |
| Flute Length (mm) | 58 |
| Number of Flutes | 3 |
| Shank Diameter (mm) | 4.00 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | Cobalt |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
