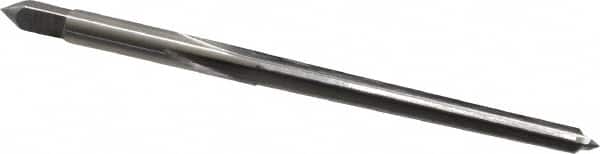

Cleveland - #3/0 Pin, 0.1302" Diam, 0.1029" Small End, 9/64" Diam Straight Shank, 1-5/16" Flute, Taper Pin Reamer
Item #: 63746986
Brand: Cleveland
Model #: C24253
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #3/0 |
| Small End Diameter (Decimal Inch) | 0.1029 |
| Reamer Diameter (Decimal Inch) | 0.1302 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (Inch) | 2-5/16 |
| Flute Length (Inch) | 1-5/16 |
| Shank Diameter (Inch) | 9/64 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Carbon Steel; Cast Iron; Plastics |
