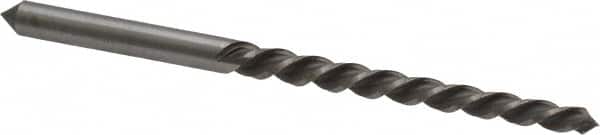

Made in USA - #1 Pin, 0.1798" Diam, 0.1447" Small End, 3/16" Diam Straight Shank, 1-11/16" Flute, Taper Pin Reamer
Item #: 72403017
Brand: Made in USA
Model #:
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #1 |
| Small End Diameter (Decimal Inch) | 0.1447 |
| Reamer Diameter (Decimal Inch) | 0.1798 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 2-15/16 |
| Flute Length (Inch) | 1-11/16 |
| Shank Diameter (Inch) | 3/16 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
