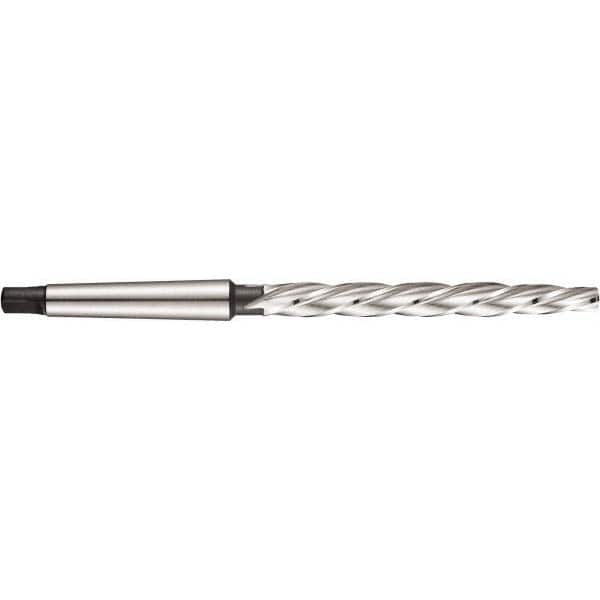

DORMER - 0.394" Reamer Diam, 1MT Morse Taper Shank, Bridge Reamer
Item #: 80986722
Brand: DORMER
Model #: 0049020
Features and Benefits
Bridge reamers are heavy-duty tools designed for enlarging and aligning holes for rivets. Ideal for use in the construction of structural steel assemblies, bridge and ship construction.
Morse tapers refer to a a series of shanks that taper at the end so they can be mounted onto the spindle of a drill press or lathe. They can be quickly removed during an operation. The taper is approcimatly 5/8 inches per foot.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Black oxide is a mild coating used on ferrous materials. It retains lubrications to aid in wear resistance and chip flow.
| Product Specifications | |
|---|---|
| Reamer Type | Bridge Reamer |
| Reamer Diameter (mm) | 10.00 |
| Reamer Diameter (Decimal Inch) | 0.3940 |
| Shank Type | Morse Taper |
| Flute Type | Spiral |
| Overall Length (mm) | 171.00 |
| Overall Length (Decimal Inch) | 6.7374 |
| Number of Flutes | 4 |
| Shank Taper Designation | 1MT |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright/Oxide |
