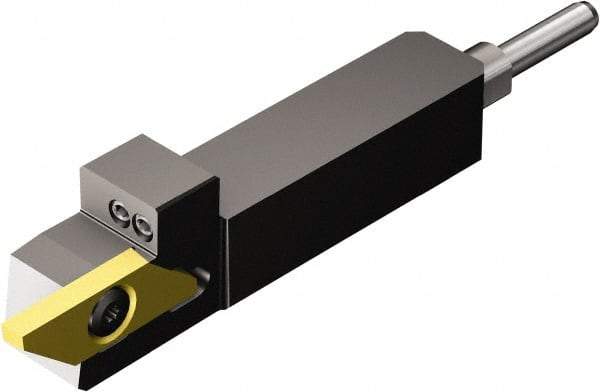

Sandvik Coromant - QSSMAL, External, Left Hand, 0.3346" Max Depth of Cut, Indexable Grooving Tool Holder - MACL 3 200-N Insert Compatibility, 5/8" Shank Height, 5/8" Shank Width, 2.7559" OAL, Through Coolant
Item #: 57889883
Brand: Sandvik Coromant
Model #: 6010212
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QSSMAL |
| Insert Compatibility | MACL 3 200-N |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Series | CoroCut XS |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Seat Size | 3 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6010212 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | MACL 3 200-N |
| Shank Diameter (Decimal Inch) | 0.6250 |
