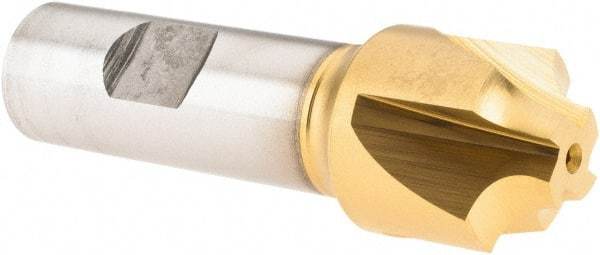

Melin Tool - 1/4" Radius, 1" Mill Diam, 4 Flute Cobalt Corner Rounding End Mill - Single End, TiN Finish, 1/2" Tip Diam, 3-1/4" OAL, 1" Shank Diam
Item #: 57833600
Brand: Melin Tool
Model #: 23080
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Material | Cobalt |
| Single or Double End | Single |
| Radius (Inch) | 1/4 |
| Radius (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 4 |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 1 |
| Tip Diameter (Inch) | 1/2 |
| Tip Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3-1/4 |
| Cutting Direction | Right Hand |
| Material Grade | M42 |
| Helix Angle | 0 |
| Radius Tolerance (Decimal Inch) | +0.001/-0.001 |
