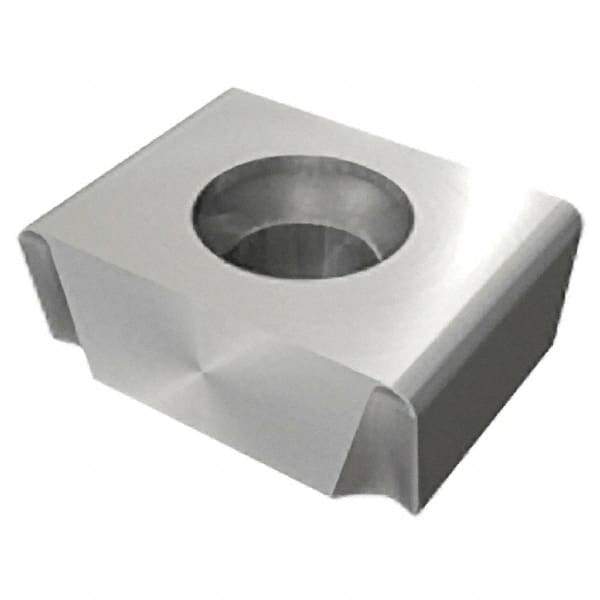

Iscar - LNET123508 TN Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.1378" Thick, 0.8mm Corner Radius
Item #: 57768947
Brand: Iscar
Model #: 5604971
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNET |
| Insert Size | 123508 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3748 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1378 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | TN |
| ISO Number | LNET 123508-TN |
