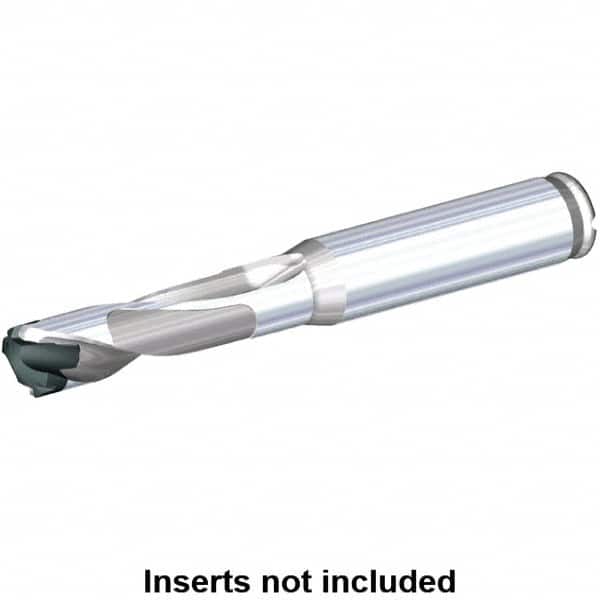

Kennametal - 10 to 10.49mm Diam, 1.5xD, 15.8mm Max Depth, 12mm Shank Diam, 27.5mm Flute, 76.5mm OAL, Replaceable Tip Drill - KTIP1000HPM Insert, J Seat Size, KTIP Toolholder, Series KenTIP
Item #: 57755837
Brand: Kennametal
Model #: 4129447
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 10.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3937 |
| Maximum Drill Diameter (mm) | 10.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4130 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.6220 |
| Maximum Drill Depth (mm) | 15.80 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | KTIP1000HPM |
| Insert Seat Size | J |
| Toolholder Style | KTIP |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (mm) | 1.70 |
| Tip Length (Decimal Inch) | 0.0670 |
| Flute Length (mm) | 27.50 |
| Flute Length (Decimal Inch) | 1.0827 |
| Overall Length (mm) | 76.50 |
| Overall Length (Decimal Inch) | 3.0120 |
| Shank Length (mm) | 46.00 |
| Shank Length (Decimal Inch) | 1.8110 |
