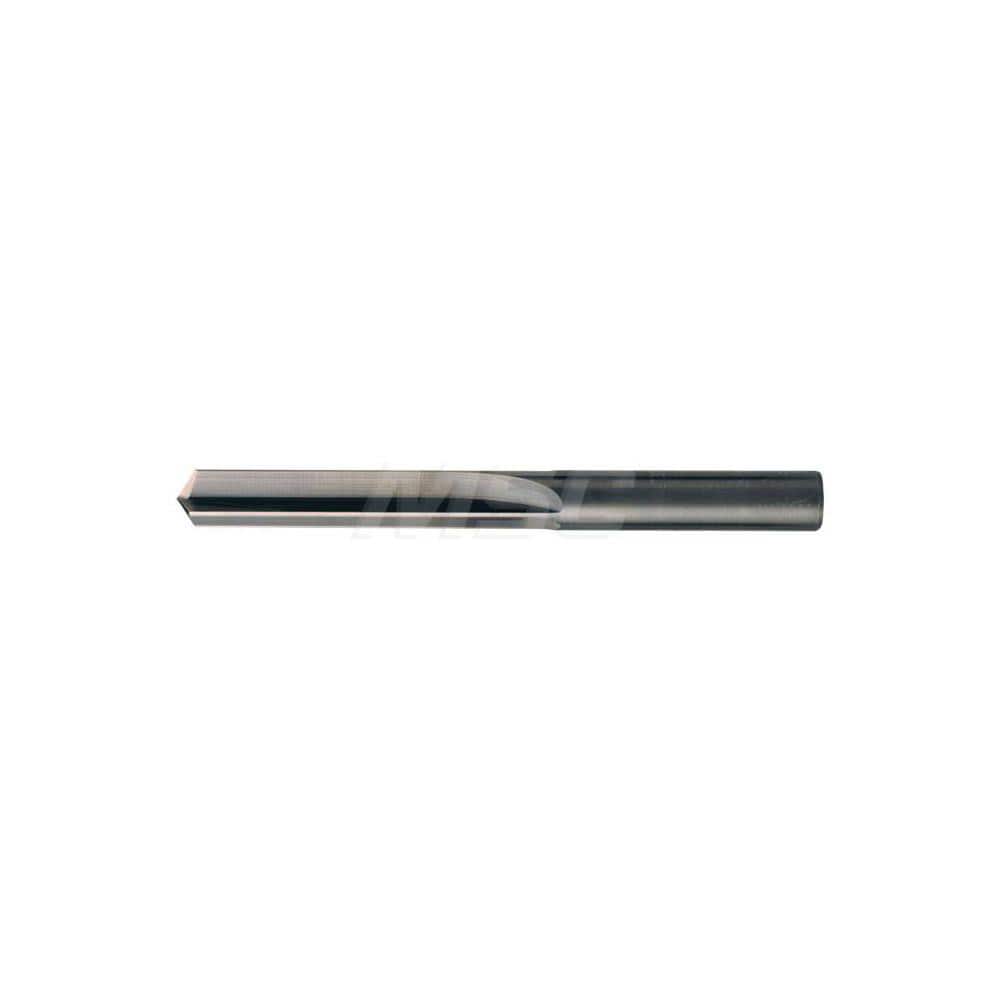

Die Drill Bit: 0.0595″ Dia, 140 °, Solid Carbide Bright Finish, 12.7mm Flute Length, 38.1mm OAL
Item #: 57649352
Brand: Chicago-Latrobe
Model #: 78553
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Wire) | #53 |
| Drill Bit Size (mm) | 1.51 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 1/2 |
| Flute Length (Decimal Inch) | 0.5000 |
| Flute Length (mm) | 12.70 |
| Drill Point Angle | 140 |
| Overall Length (mm) | 38.10 |
| Shank Diameter (Decimal Inch) | 0.0595 |
| Shank Diameter (mm) | 1.51 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.0595 |
| Material Grade | Submicron |
| Overall Length (Decimal Inch) | 1.5000 |
| Series | 769 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Primary Workpiece Material | Stainless Steel |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 25.40 |
