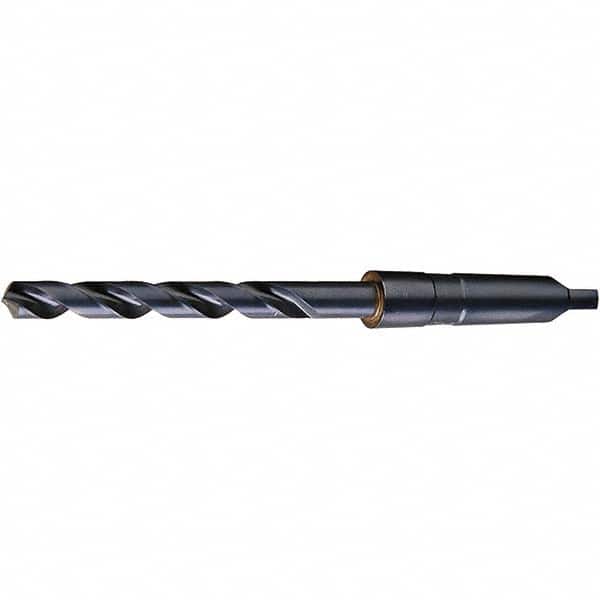

Taper Shank Drill Bit: 0.9844″ Dia, 3MT, 118 °, High Speed Steel Oxide Finish, 11″ OAL, Standard Point, Spiral Flute
Item #: 57647448
Brand: Cle-Force
Model #: C68833
Product Specifications
| Drill Bit Size (Inch) | 63/64 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 3MT |
| Overall Length (Inch) | 11 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | Standard |
| Flute Length (Inch) | 6-3/8 |
| Drill Bit Size (Decimal Inch) | 0.9844 |
| Flute Length (Decimal Inch) | 6.3750 |
| Tool Performance | General Purpose |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 11.0000 |
| Series | 1682 |
| Standards | ASME B94.11M |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
