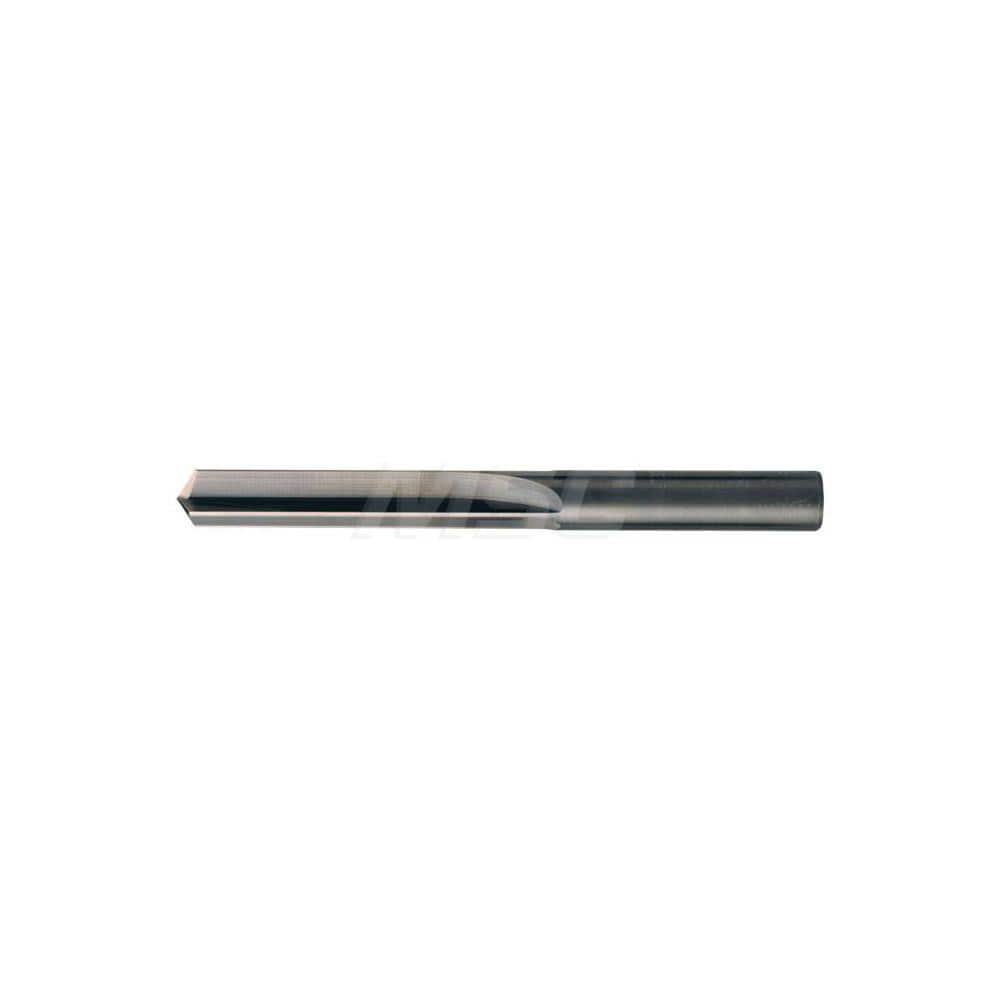

Die Drill Bit: 0.2055″ Dia, 140 °, Solid Carbide Bright Finish, 31.75mm Flute Length, 60.33mm OAL
Item #: 57638041
Brand: Chicago-Latrobe
Model #: 78505
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Wire) | #5 |
| Drill Bit Size (mm) | 5.22 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 1-1/4 |
| Flute Length (Decimal Inch) | 1.2500 |
| Flute Length (mm) | 31.75 |
| Drill Point Angle | 140 |
| Overall Length (mm) | 60.33 |
| Shank Diameter (Decimal Inch) | 0.2055 |
| Shank Diameter (mm) | 5.22 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2055 |
| Material Grade | Submicron |
| Overall Length (Decimal Inch) | 2.3750 |
| Series | 769 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Stainless Steel |
| Shank Length (Decimal Inch) | 1.1252 |
| Shank Length (mm) | 28.58 |
