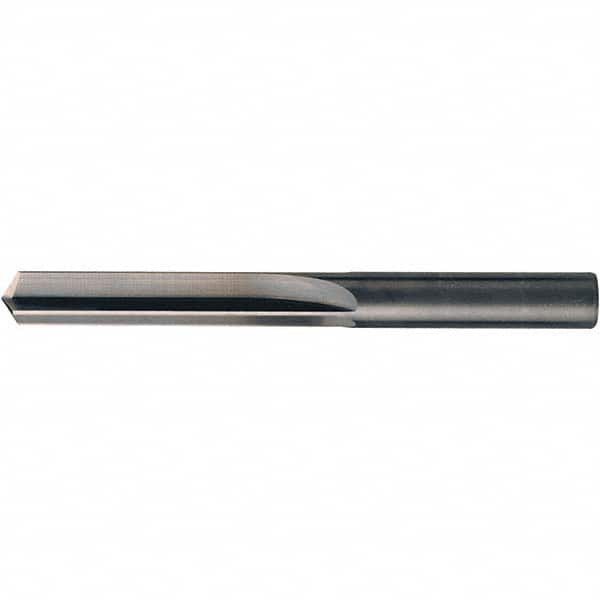

Die Drill Bit: 0.1040″ Dia, 140 °, Solid Carbide Bright Finish, 20.64mm Flute Length, 46.04mm OAL
Item #: 57637928
Brand: Chicago-Latrobe
Model #: 78537
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Wire) | #37 |
| Drill Bit Size (mm) | 2.64 |
| Tool Material | Carbide |
| Coating/Finish | Bright |
| Flute Length (Inch) | 13/16 |
| Flute Length (Decimal Inch) | 0.8125 |
| Flute Length (mm) | 20.64 |
| Drill Point Angle | 140 |
| Overall Length (mm) | 46.04 |
| Shank Diameter (Decimal Inch) | 0.1040 |
| Shank Diameter (mm) | 2.64 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.1040 |
| Material Grade | Submicron |
| Overall Length (Decimal Inch) | 1.8125 |
| Series | 769 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 25.40 |
