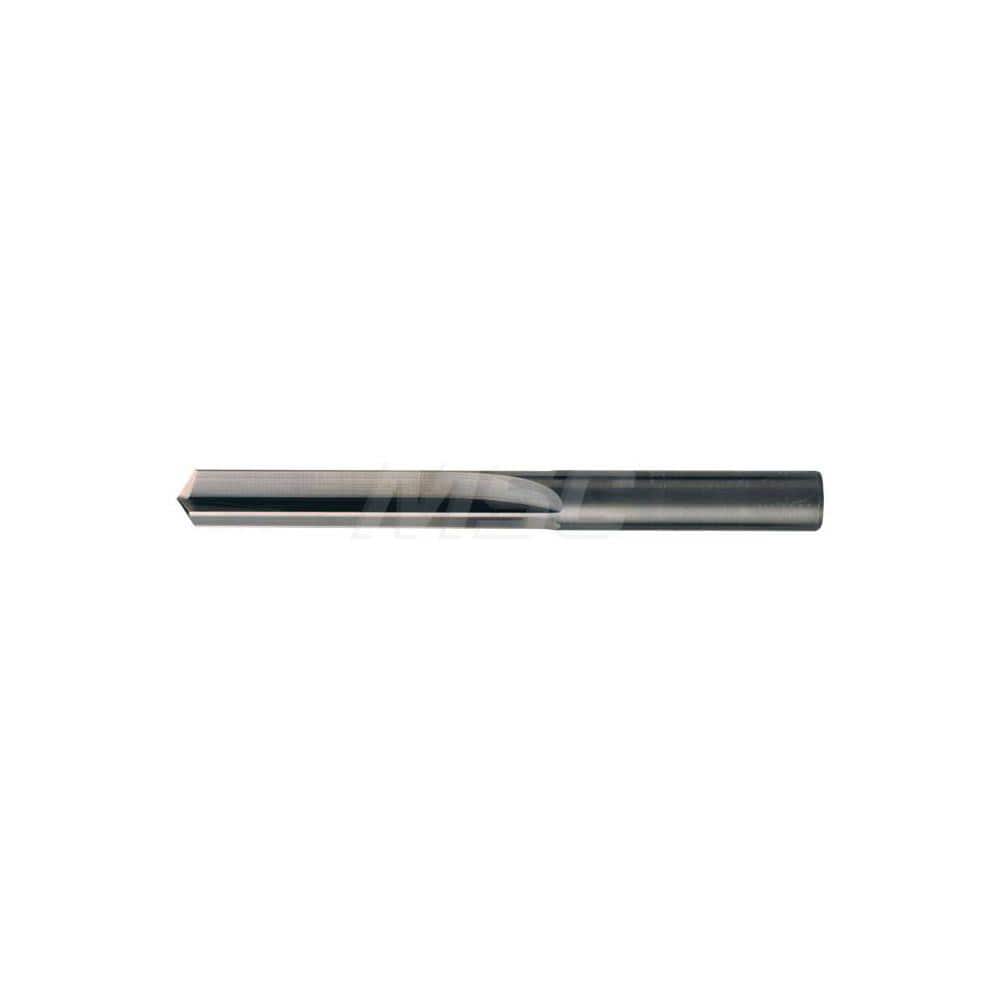

Die Drill Bit: 29/64″ Dia, 140 °, Solid Carbide Bright Finish, 53.98mm Flute Length, 90.49mm OAL
Item #: 57637704
Brand: Chicago-Latrobe
Model #: 78613
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 29/64 |
| Drill Bit Size (mm) | 11.51 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 2-1/8 |
| Flute Length (Decimal Inch) | 2.1250 |
| Flute Length (mm) | 53.98 |
| Drill Point Angle | 140 |
| Overall Length (mm) | 90.49 |
| Shank Diameter (mm) | 11.51 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.4531 |
| Material Grade | Submicron |
| Overall Length (Decimal Inch) | 3.5625 |
| Series | 769 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Primary Workpiece Material | Stainless Steel |
| Shank Length (Decimal Inch) | 1.4374 |
| Shank Length (mm) | 36.51 |
