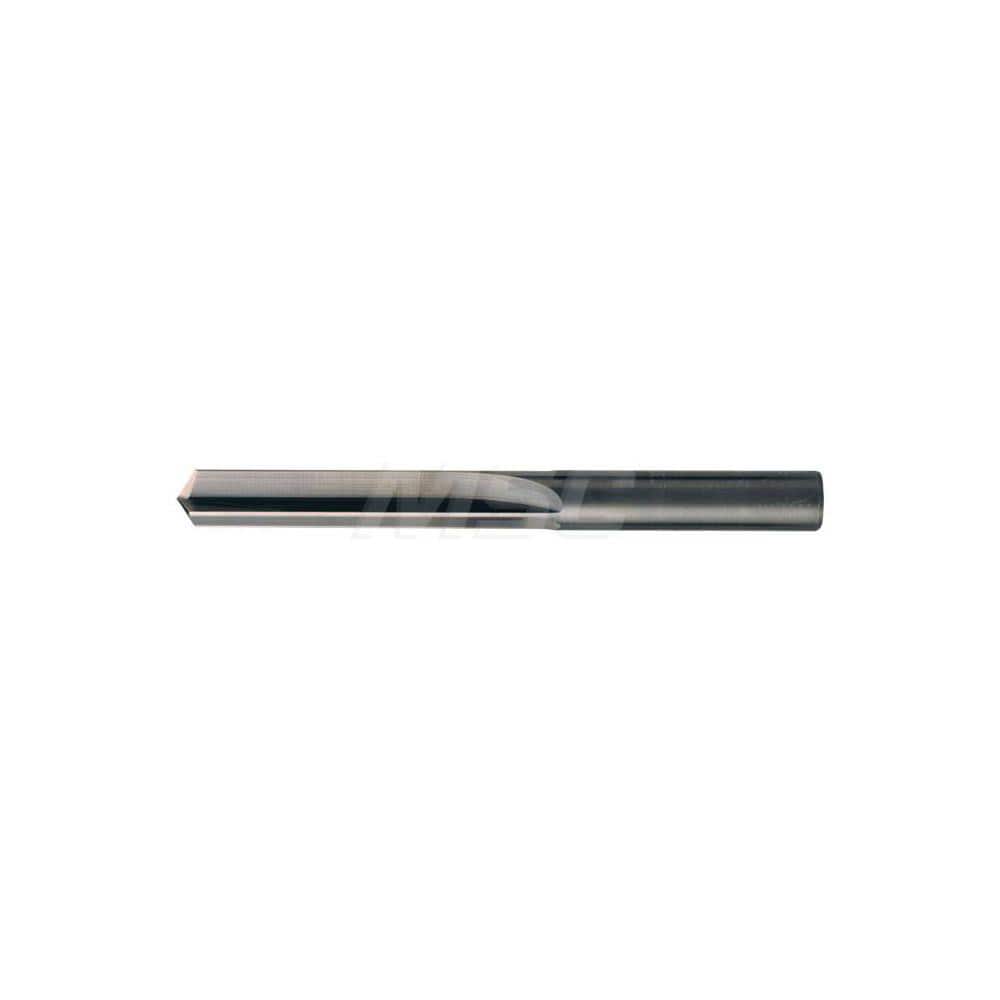

Die Drill Bit: 31/64″ Dia, 140 °, Solid Carbide Bright Finish, 55.56mm Flute Length, 93.66mm OAL
Item #: 57637696
Brand: Chicago-Latrobe
Model #: 78615
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 31/64 |
| Drill Bit Size (mm) | 12.30 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 2-3/16 |
| Flute Length (Decimal Inch) | 2.1875 |
| Flute Length (mm) | 55.56 |
| Drill Point Angle | 140 |
| Overall Length (mm) | 93.66 |
| Shank Diameter (mm) | 12.30 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Material Grade | Submicron |
| Overall Length (Decimal Inch) | 3.6875 |
| Series | 769 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Primary Workpiece Material | Stainless Steel |
| Shank Length (Inch) | 1-1/2 |
| Shank Length (Decimal Inch) | 1.5000 |
| Shank Length (mm) | 38.10 |
