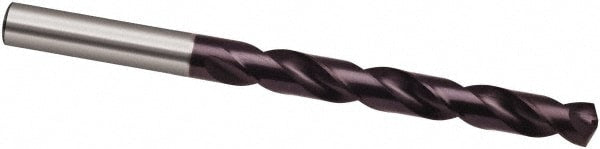

Jobber Drill: 5.05 mm Dia, 130 deg Point, Cobalt
Item #: 58588989
Brand: Guhring
Model #: 9024580050500
Product Specifications
| Drill Bit Size (mm) | 5.05 |
| Drill Bit Size (Decimal Inch) | 0.1988 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1988 |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Spiral Type | Regular |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0472 |
| Proprietary Coating/Finish | FIREX |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 5.05 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 5.05 |
| Drill Bit Size (Decimal Inch) | 0.1988 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1988 |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Spiral Type | Regular |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0472 |
| Proprietary Coating/Finish | FIREX |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 5.05 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 58588989 |
| Mfr Part # | 9024580050500 |
| Country of Origin Country of Origin is subject to change | Germany |
