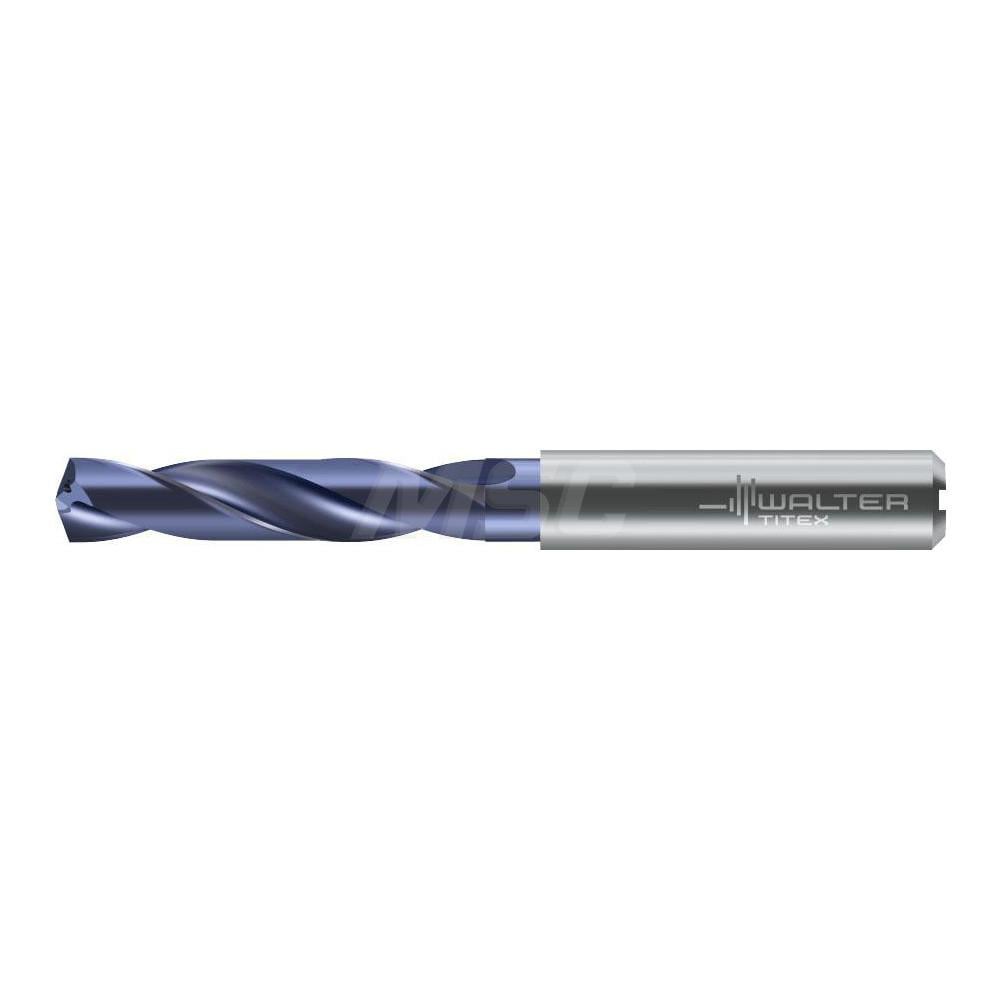

Screw Machine Length Drill Bit: 27/64" Dia, 140 deg Point, Solid Carbide
Item #: 38069092
Brand: Walter-Titex
Model #: 6968830
Product Specifications
| Drill Bit Size (Inch) | 27/64 |
| Drill Bit Size (mm) | 10.72 |
| Drill Bit Size (Decimal Inch) | 0.4219 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiNAl |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron; Steel |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Drill Tip Finish/Coating | TiNAl |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0160 |
| Shank Diameter (mm) | 12.00 |
| Series | DC150-03-A1 |
| Proprietary Coating/Finish | TiNAl |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.5750 |
| Maximum Drilling Depth (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.7700 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 1.95 |
| Drill Point Length (Decimal Inch) | 0.0770 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 2.1650 |
| Flute Length (mm) | 55.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 9.50 - 11.00 |
| UNSPSC Code | 23241635 |
