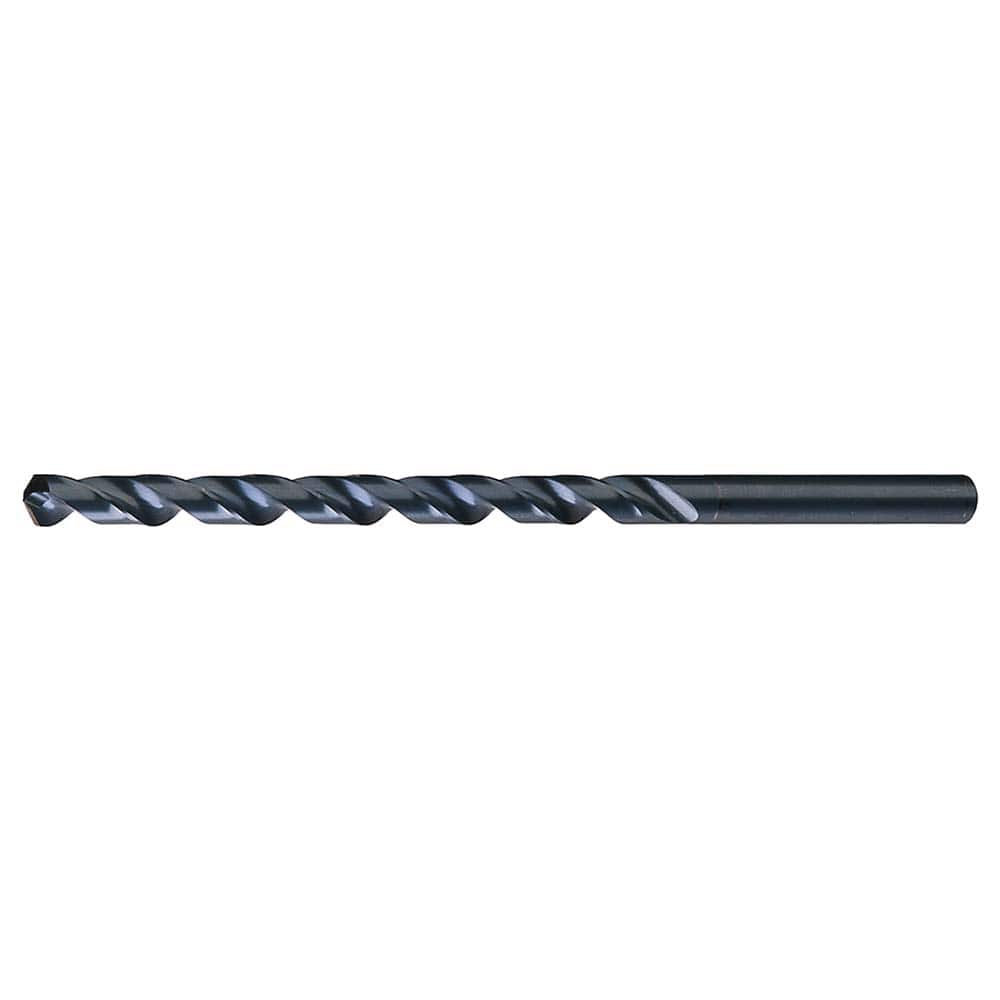

Extra Length Drill Bit: 0.6875″ Dia, 118 °, High Speed Steel Oxide Finish, 9″ Flute Length, 12″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series 1806
Item #: 57594012
Brand: Cle-Line
Model #: C20472
Product Specifications
| Drill Bit Size (Inch) | 11/16 |
| Overall Length (Inch) | 12 |
| Flute Length (Inch) | 9 |
| Flute Length (mm) | 228.60 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Drill Point Angle | 118 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Spiral |
| Series | 1806 |
| Point Type | Notched |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | General Purpose |
| Drill Bit Size (Decimal Inch) | 0.6875 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 0.6875 |
| Shank Diameter (mm) | 17.46 |
| Shank Diameter (Decimal Inch) | 11/16 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Flute Length (Decimal Inch) | 9.0000 |
