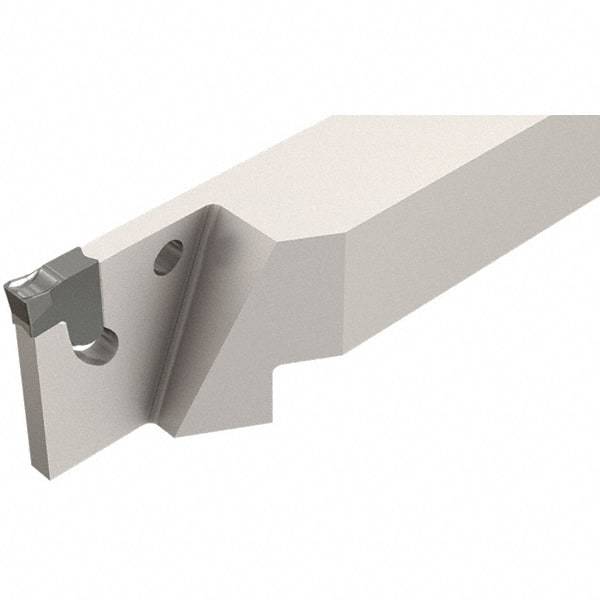

Iscar - External Thread, 1-1/2" Max Depth of Cut, 0.224" Min Groove Width, 5.91" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-GripIQ
Item #: 57553661
Brand: Iscar
Model #: 2302211
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Minimum Groove Width (Decimal Inch) | 0.2240 |
| Maximum Groove Width (Decimal Inch) | 0.2560 |
| Overall Length (Decimal Inch) | 5.9100 |
| Series | Tang-GripIQ |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.0000 |
| Complete Insert Compatibility | TAG L6.3C-4D; TAG L6.3J-4D; TAG N6.3C; TAG N6.3J; TAG N6.3JT; TAG N6UT; TAG R6.3C-4D; TAG R6.3J-4D |
