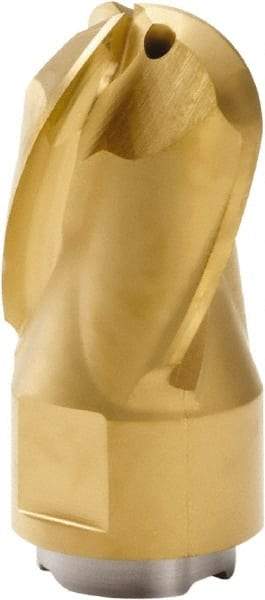

Seco - MP16 E05 Grade F40M Carbide End Milling Tip Insert - TiAlN/TiN Finish, 3 Flutes, 16mm Cutting Diam, 19mm Depth of Cut, 32.6mm Extension, 0.315" Cnr Rad, 30° Helix
Item #: 57495731
Brand: Seco
Model #: 69551
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Milling Tip Style | MP16 |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Manufacturer's Grade | F40M |
| Depth of Cut (mm) | 19.00 |
| Depth of Cut (Decimal Inch) | 0.7480 |
| Number of Flutes | 3 |
| Coating | TiAlN/TiN |
| Corner Radius (Decimal Inch) | 0.3150 |
| Coating Process | PVD |
| Chipbreaker | E05 |
| Extension From Holder (mm) | 32.60 |
| Extension From Holder (Decimal Inch) | 1.2835 |
| Helix Angle | 30 |
