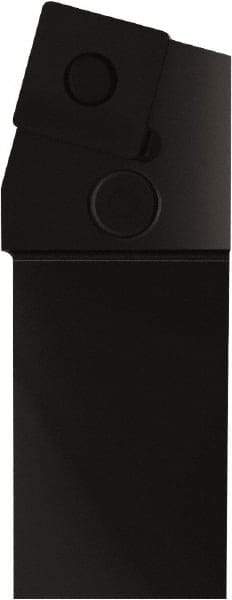

Seco - PSBN, Right Hand Cut, 75° Lead Angle, 50mm Shank Height x 50mm Shank Width, Negative Rake Indexable Turning Toolholder - 250mm OAL, SNMM 2507.. Insert Compatibility, Series Lever Lock
Item #: 57494494
Brand: Seco
Model #: 70262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PSBN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Lever Lock |
| Lead Angle | 75 |
| Shank Width (mm) | 50.00 |
| Shank Width (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | SNMM 2507.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 43.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.6929 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Insert Inscribed Circle (Decimal Inch) | 1.0000 |
