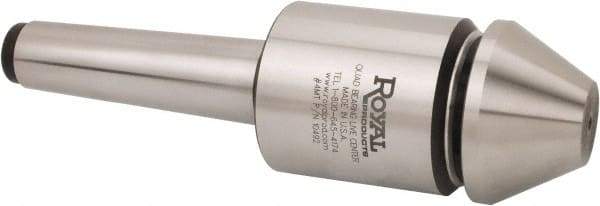

Royal Products - MT5 Morse Taper, 2.45" Head Diam Live Center - 5,000 Max RPM, 2.78" Head Length, 2-1/2" Point Diam, 1.58" Point Len, 1,905 Lb Max Workpc, Bull Nose Point
Item #: 57477135
Brand: Royal Products
Model #: 10493
Exact Tooling IR#: 04
Features and Benefits
Bull nose points are flat and engineered to position and balance heavy work loads over the bearings. They are designed for thick wall pipe, tubes and parts with large center holes
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1905.00 |
| Point Style | Bull Nose |
| Point Diameter (Inch) | 2-1/2 |
| Point Diameter (Decimal Inch) | 2.5000 |
| Point Length (Decimal Inch) | 1.5800 |
| Thrust Load (Lb.) | 2150.00 |
| Radial Load (Lb.) | 1905.00 |
| Head Diameter (Decimal Inch) | 2.4500 |
| Head Length (Decimal Inch) | 2.7800 |
| Maximum RPM | 5000 |
| Carbide-Tipped | No |
