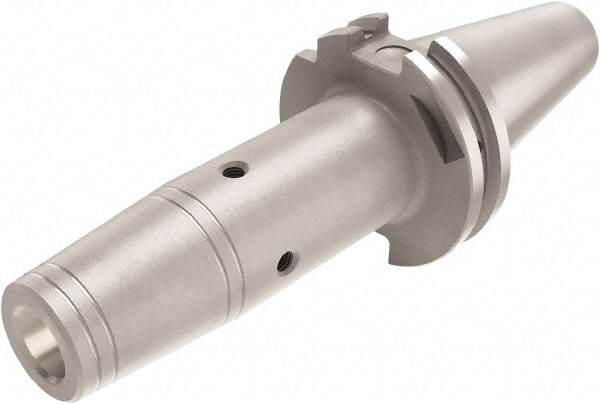

Seco - 16mm Hole Diam, CAT50 Taper Shank Shrink Fit Tool Holder & Adapter - 4" Projection, 1.063" Nose Diam, 1.496" Clamping Depth, 38,000 RPM, Through Coolant
Item #: 57207789
Brand: Seco
Model #: 66571
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Hole Diameter (mm) | 16.00 |
| Projection (Decimal Inch) | 4.0000 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 1.4960 |
| Overall Length (Decimal Inch) | 8.0000 |
| Balanced to (RPM) | 38000 |
