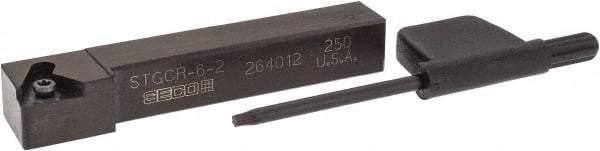

Seco - STGC, Right Hand Cut, 3/8" Shank Height x 3/8" Shank Width, Neutral Rake Indexable Turning Toolholder - 2-1/2" OAL, TC..21.5. Insert Compatibility, Series Screw Lock
Item #: 57140428
Brand: Seco
Model #: 13373
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | STGC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw Lock |
| Shank Width (Inch) | 3/8 |
| Shank Width (Decimal Inch) | 0.3750 |
| Shank Height (Inch) | 3/8 |
| Shank Height (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Insert Compatibility | TC..21.5. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Inch) | 1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 0.6200 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
