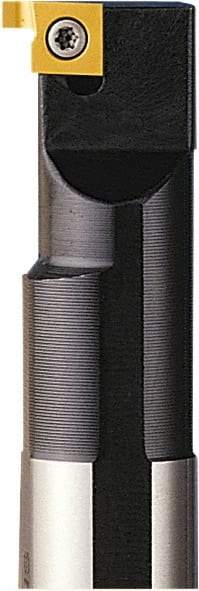

Seco - SN, Internal, Left Hand, 0.103" Max Depth of Cut, 0.03 to 0.103" Groove Width, Indexable Grooving Tool Holder - 9NL Insert Compatibility, 5/8" Shank Width, 5" OAL
Item #: 57139248
Brand: Seco
Model #: 72595
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1030 |
| Minimum Groove Width (Decimal Inch) | 0.0300 |
| Maximum Groove Width (Decimal Inch) | 0.1030 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | SN |
| Insert Compatibility | 9NL |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (Decimal Inch) | 0.2590 |
| Head Length (Decimal Inch) | 1.0000 |
| Complete Insert Compatibility | 9NL .030FG; 9NL .046FG; 9NL .056FG; 9NL .068FG; 9NL .086FG; 9NL .103FG |
