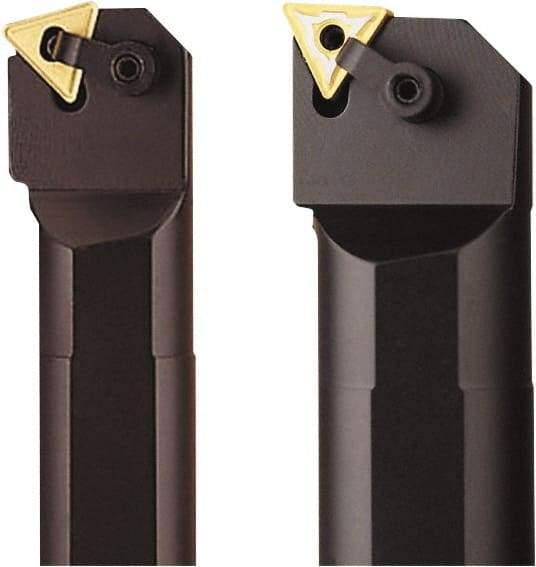

Seco - 1.53" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, MTUN Indexable Boring Bar - TNMG 322 Insert, Pin & Clamp Holding Method
Item #: 57137085
Brand: Seco
Model #: 43220
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MTUN |
| Minimum Bore Diameter (Decimal Inch) | 1.5300 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 14 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | TNMG 322 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | -3 |
| Center to Cutting Edge (Decimal Inch) | 0.7560 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
