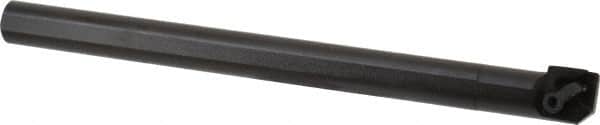

Seco - 1" Min Bore Diam, 10" OAL, 3/4" Shank Diam, MTFN Indexable Boring Bar - TNMG 332 Insert, Pin & Clamp Holding Method
Item #: 57136541
Brand: Seco
Model #: 43212
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MTFN |
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 10 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | TNMG 332 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 0 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -5 |
| Toolholder Material | Steel |
