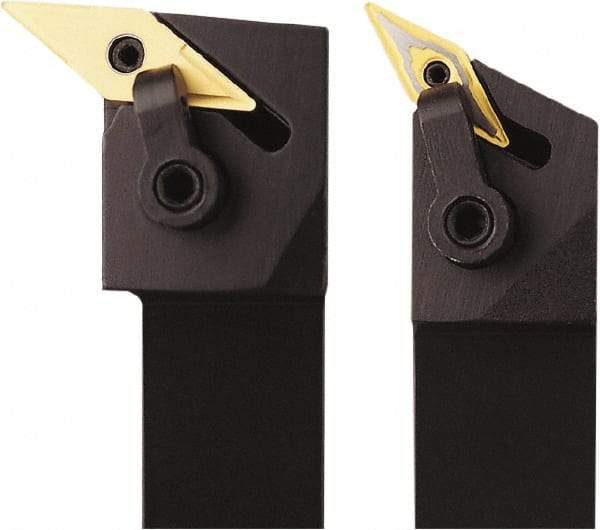

Seco - MVLN, Left Hand Cut, -5° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, VN..43. Insert Compatibility, Series Multiple Lock
Item #: 57128381
Brand: Seco
Model #: 13199
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | MVLN |
| Rake | Negative |
| Series | Multiple Lock |
| Lead Angle | -5 |
| Shank Width (Inch) | 1-1/4 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | VN..43. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (Inch) | 2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Head Length (Decimal Inch) | 1.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
