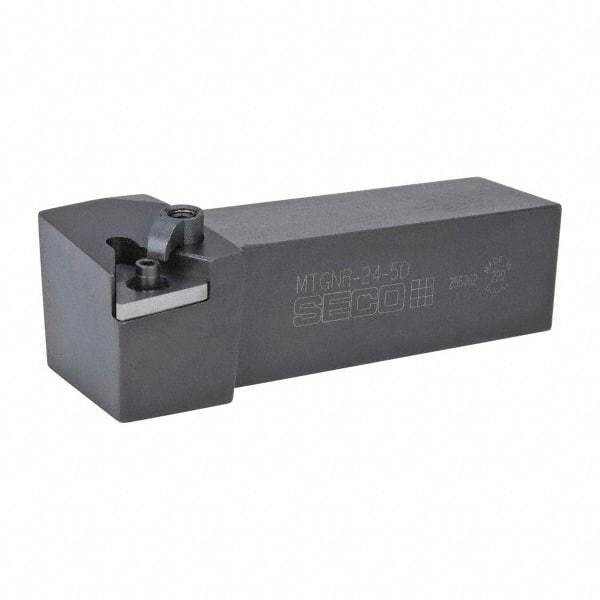

Seco - MTGN, Right Hand Cut, 1-1/2" Shank Height x 1-1/2" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, TN..54. Insert Compatibility, Series Multiple Lock
Item #: 57125601
Brand: Seco
Model #: 12816
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | MTGN |
| Rake | Negative |
| Series | Multiple Lock |
| Shank Width (Inch) | 1-1/2 |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | TN..54. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (Inch) | 2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Head Length (Decimal Inch) | 1.4400 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Toolholder Material | Steel |
