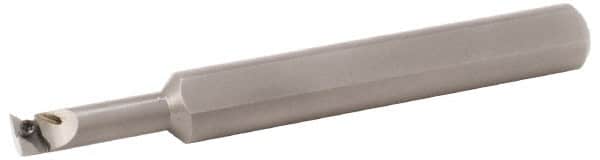

Kennametal - 9.14mm Min Bore Diam, 102mm OAL, 12mm Shank Diam, Indexable Boring Bar - GP.. 050102 Insert, Screw Holding Method
Item #: 57115974
Brand: Kennametal
Model #: 1930438
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | C |
| Minimum Bore Diameter (mm) | 9.14 |
| Minimum Bore Diameter (Decimal Inch) | 0.3598 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | GP.. 050102 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Coolant Hole Diameter (mm) | 1.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0394 |
| Toolholder Material | Steel |
