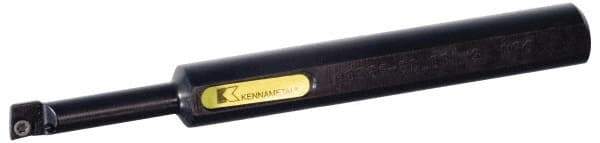

Kennametal - 19.56mm Min Bore Diam, 10" OAL, 5/8" Shank Diam, Indexable Boring Bar - CC.. 32.52 Insert, Screw Holding Method
Item #: 57114282
Brand: Kennametal
Model #: 2598697
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 19.56 |
| Minimum Bore Diameter (Decimal Inch) | 0.7701 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | CC.. 32.52 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | 5 |
| Toolholder Material | Carbide |
