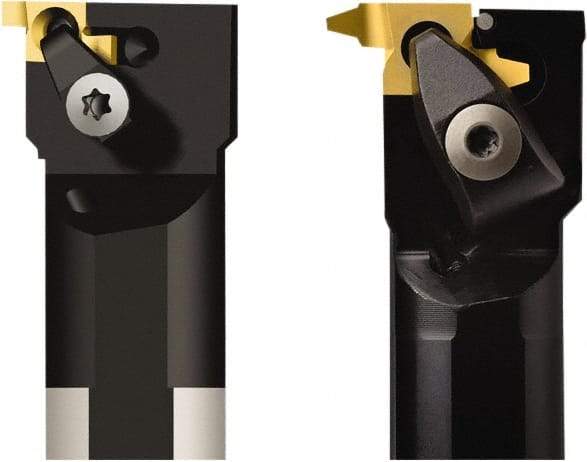

Seco - CN, Internal, Left Hand, 0.103" Max Depth of Cut, 0.03 to 0.103" Groove Width, Indexable Grooving Tool Holder - 10ER, 12ER Insert Compatibility, 3/4" Shank Width, 7" OAL
Item #: 57112963
Brand: Seco
Model #: 72624
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1030 |
| Minimum Groove Width (Decimal Inch) | 0.0300 |
| Maximum Groove Width (Decimal Inch) | 0.1030 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | CN |
| Insert Compatibility | 10ER; 12ER |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 0.9500 |
| Center to Cutting Edge (Decimal Inch) | 0.4900 |
| Complete Insert Compatibility | 10ER .030FG; 10ER .046FG; 10ER .056FG; 10ER .068FG; 10ER .086FG; 10ER .103FG; 10ER 0.50FD; 10ER 0.80FD; 10ER 1.00FD; 10ER 1.0D76; 10ER 1.0R; 10ER 1.2R; 12ER 1.04FD; 12ER 1.20FD; 12ER 1.40FD; 12ER 1.47FD; 12ER 1.50FD; 12ER 1.57FD; 12ER 1.70FD; 12ER 1.96FD; |
