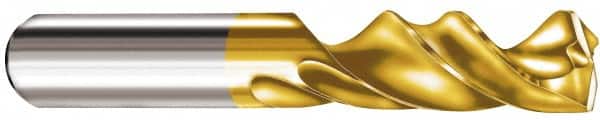

SGS - 0.5039" 145° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiN Finish, Right Hand Cut, 60mm Flute Length, 107mm OAL, Standard Point, Straight Shank
Item #: 57031346
Brand: SGS
Model #: 63197
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5039 |
| Drill Point Angle | 145 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 60.00 |
| Overall Length (mm) | 107.00 |
| Point Type | Standard |
| Shank Diameter (mm) | 14.00 |
| Maximum Drilling Depth (mm) | 43.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 45.00 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.0076 to +0.0254 |
| Web Thinning | Web-Thinned |
| Series/List | 135M |
