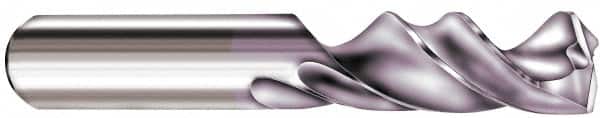

Screw Machine Length Drill Bit: 0.2812″ Dia, 145 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 135
Item #: 57028987
Brand: SGS
Model #: 51397
Product Specifications
| Drill Bit Size (Inch) | 9/32 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 145 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Drill Bit Size (Decimal Inch) | 0.2812 |
| Overall Length (Inch) | 3-1/8 |
| Series | 135 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-7/16 |
| Drill Bit Diameter Tolerance | +0.0002 to +0.0008 in |
| Flute Length (Inch) | 1-9/16 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
