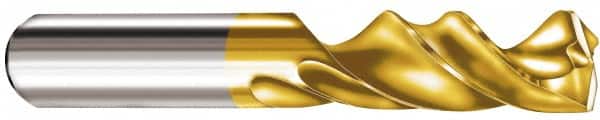

SGS - 29/64" 145° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 57028656
Brand: SGS
Model #: 51310
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4531 |
| Drill Bit Size (Inch) | 29/64 |
| Drill Point Angle | 145 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-3/16 |
| Overall Length (Inch) | 4-1/16 |
| Point Type | Standard |
| Shank Diameter (Inch) | 1/2 |
| Maximum Drilling Depth (Inch) | 1-9/16 |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-49/64 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0003 to +0.0010 |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinned |
| Series/List | 135 |
