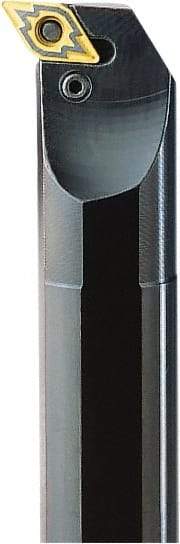

Seco - PDUNR, Right Hand Cut, 93° Lead Angle, 47mm Shank Height x 48.5mm Shank Width, Negative Rake Indexable Turning Toolholder - 450mm OAL, DN..1506.. Insert Compatibility
Item #: 57019481
Brand: Seco
Model #: 00296
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PDUNR |
| Rake | Negative |
| Rake Angle | -6 |
| Lead Angle | 93 |
| Shank Width (mm) | 48.50 |
| Shank Width (Decimal Inch) | 1.9094 |
| Shank Height (mm) | 47.00 |
| Shank Height (Decimal Inch) | 1.8504 |
| Overall Length (mm) | 450.00 |
| Overall Length (Decimal Inch) | 17.7165 |
| Insert Compatibility | DN..1506.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
