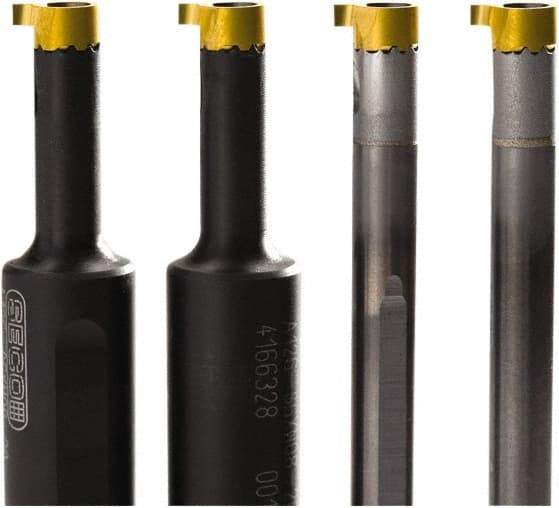

Seco - 11mm Min Bore Diam, 96mm OAL, 16mm Shank Diam, A-SGXN Indexable Boring Bar - 21mm Max Bore Depth, LCEX 1105.. Insert, Screw Holding Method
Item #: 57009722
Brand: Seco
Model #: 00268
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SGXN |
| Series | Mini Shaft |
| Minimum Bore Diameter (mm) | 11.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.4331 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 21.00 |
| Maximum Bore Depth (Decimal Inch) | 0.8268 |
| Overall Length (mm) | 96.00 |
| Overall Length (Decimal Inch) | 3.7795 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | LCEX 1105.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Center to Cutting Edge (mm) | 6.70 |
| Center to Cutting Edge (Decimal Inch) | 0.2638 |
| Insert Thickness (Decimal Inch) | 0.1555; 0.1575; 0.1634; 0.1673 |
| Complete Insert Compatibility | LCEX 11; LCEX 110501-0200L; LCEX 110501-0200R; LCEX 110502-0150L; LCEX 110502-0150R; LCEX 110502-0250L-R47; LCEX 110502-0250R-L47; LCEX 110502-0270L-L30; LCEX 110502-0270L-R18; LCEX 110502-0270R-L18; LCEX 110502-0270R-R30; LCEX 110502-0350L-N45 |
| Toolholder Material | Steel |
