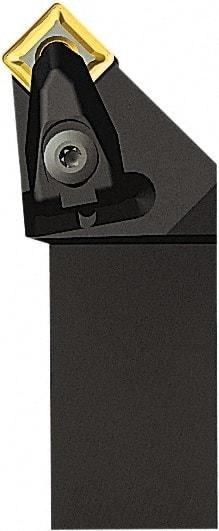

Seco - DSSN, Left Hand Cut, 45° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 161.2mm OAL, SNM..1506.. Insert Compatibility, Series Dual Clamp
Item #: 57003709
Brand: Seco
Model #: 34314
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DSSN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | Dual Clamp |
| Lead Angle | 45 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 161.20 |
| Overall Length (Decimal Inch) | 6.3464 |
| Insert Compatibility | SNM..1506.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 22.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8661 |
| Head Length (mm) | 41.00 |
| Head Length (Decimal Inch) | 1.6142 |
| Insert Inscribed Circle (Decimal Inch) | 0.6252 |
